Synthfool:Docs:Other/Misc:Bit Expander Schematics

File NameSizeType
Bit Expander Schematics (all)2.2MZIP
Bit Expander Schematics 01a 172K JPG

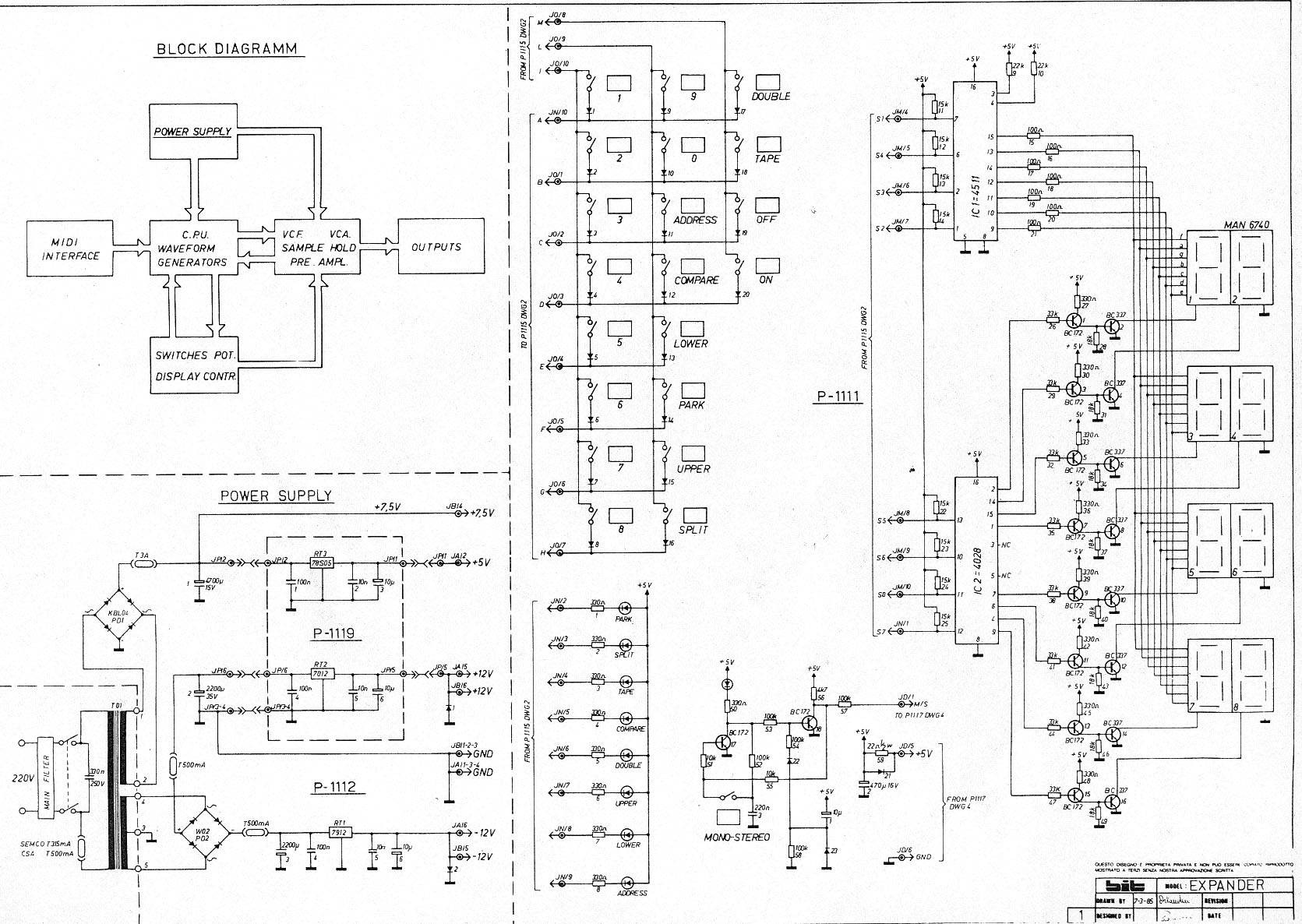

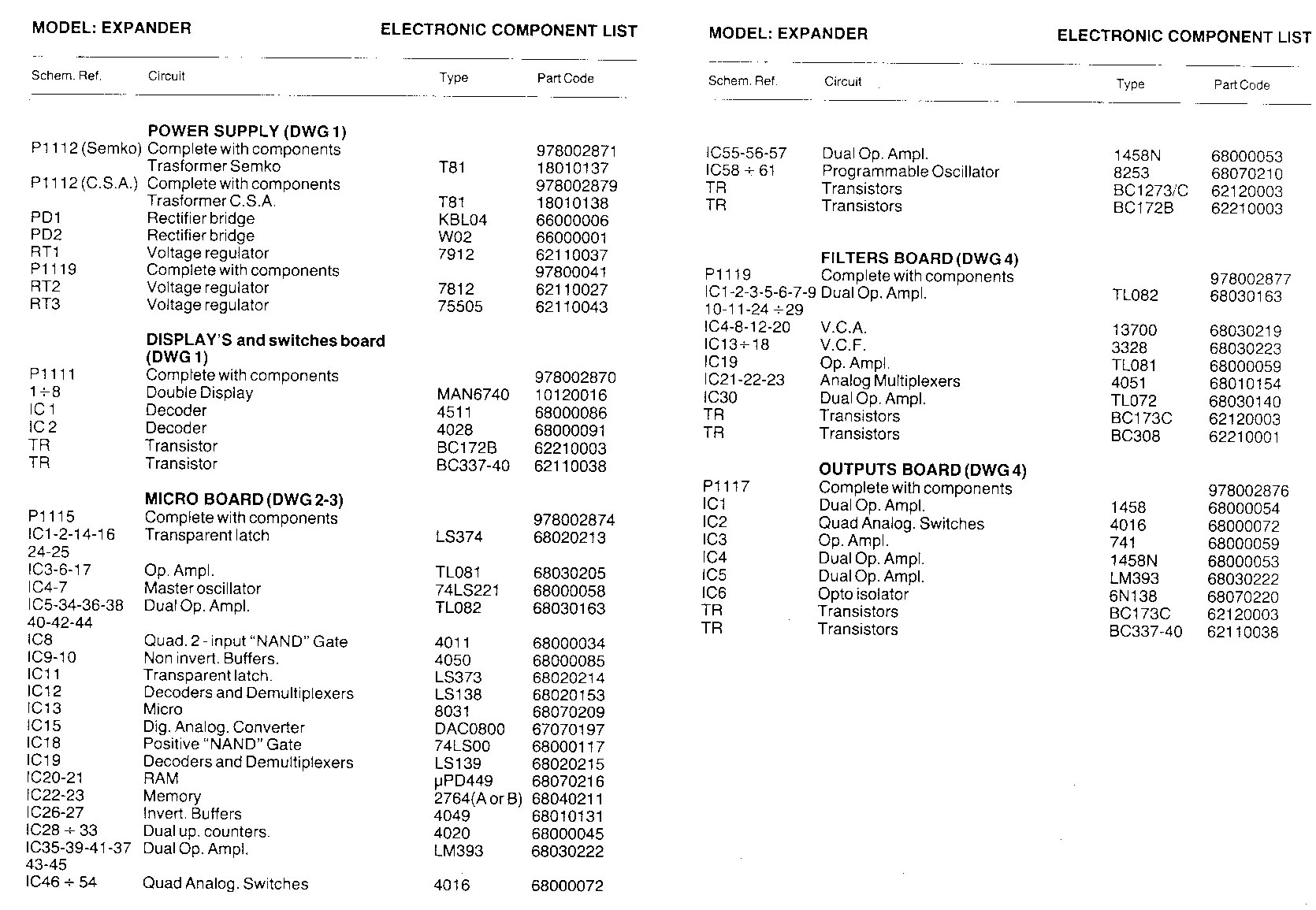

Bit Expander Schematics 01b 379K JPG
Bit Expander Schematics 01c 381K JPG

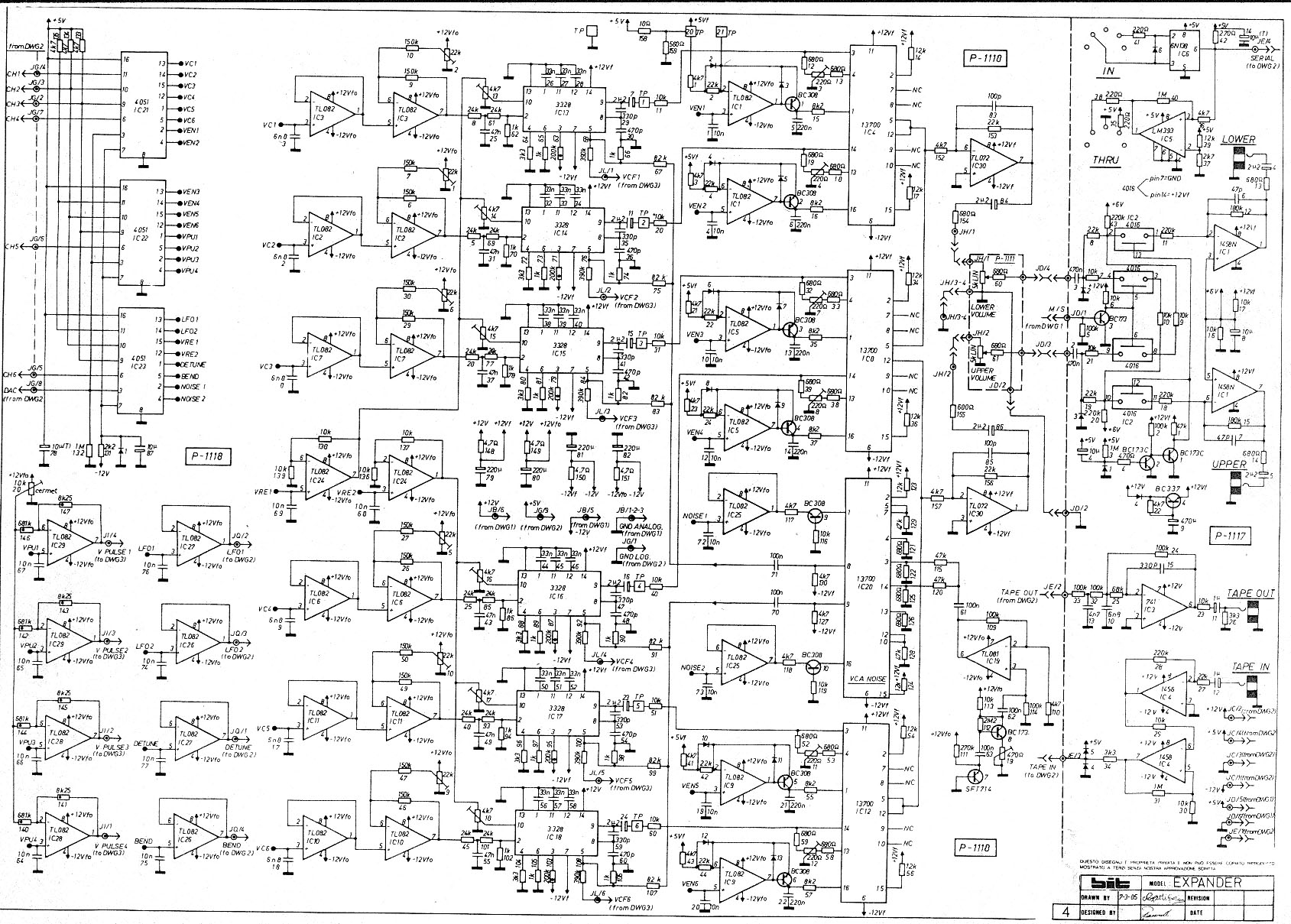

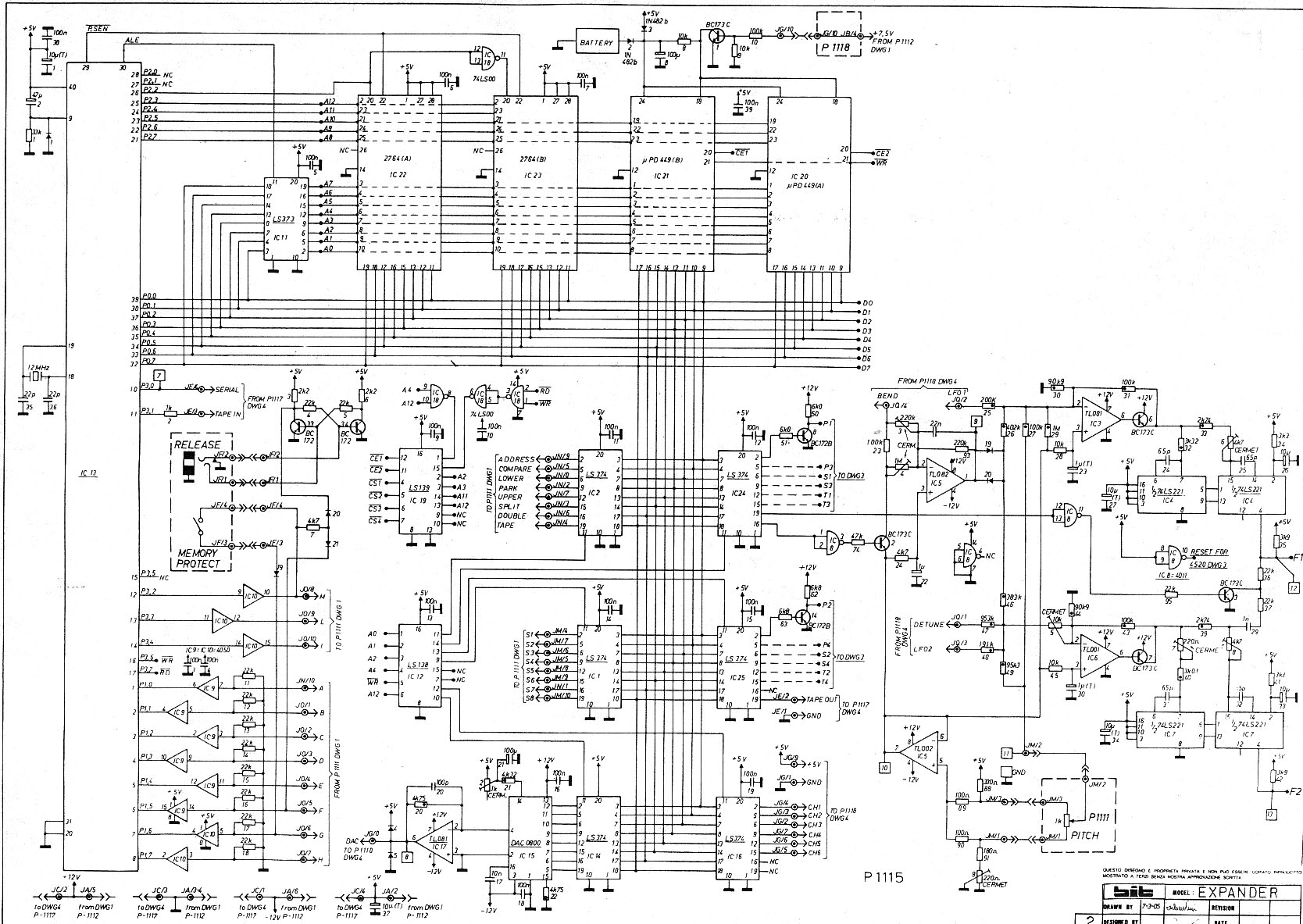

Bit Expander Schematics 01d 440K JPG

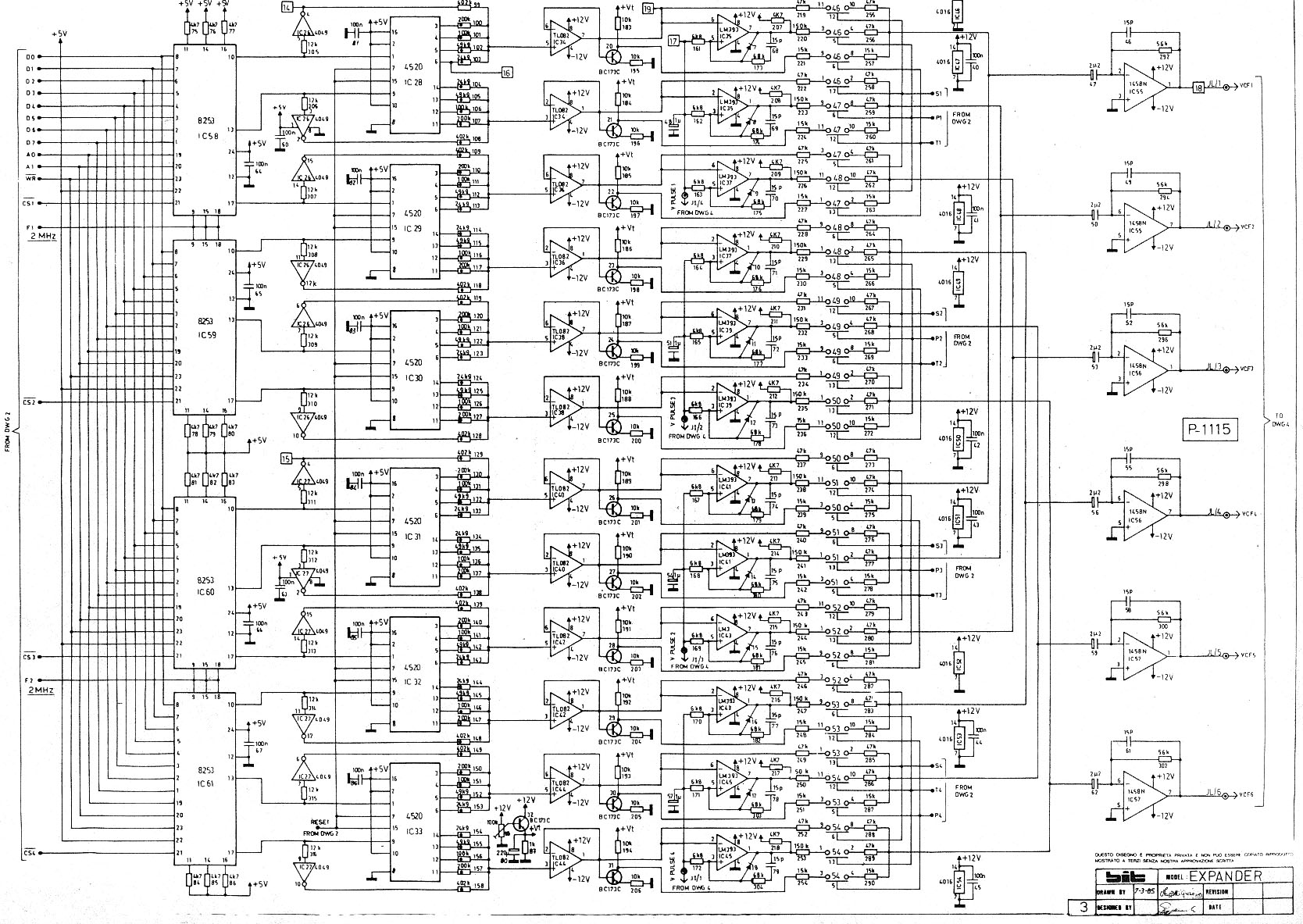

Bit Expander Schematics 01e 509K JPG
Bit Expander Schematics 01f 560KJPG
