Synthfool:Docs:Moog:Sonic 6 Service Manual

File NameSizeType
Sonic 6 Service Manual3.5MZIP

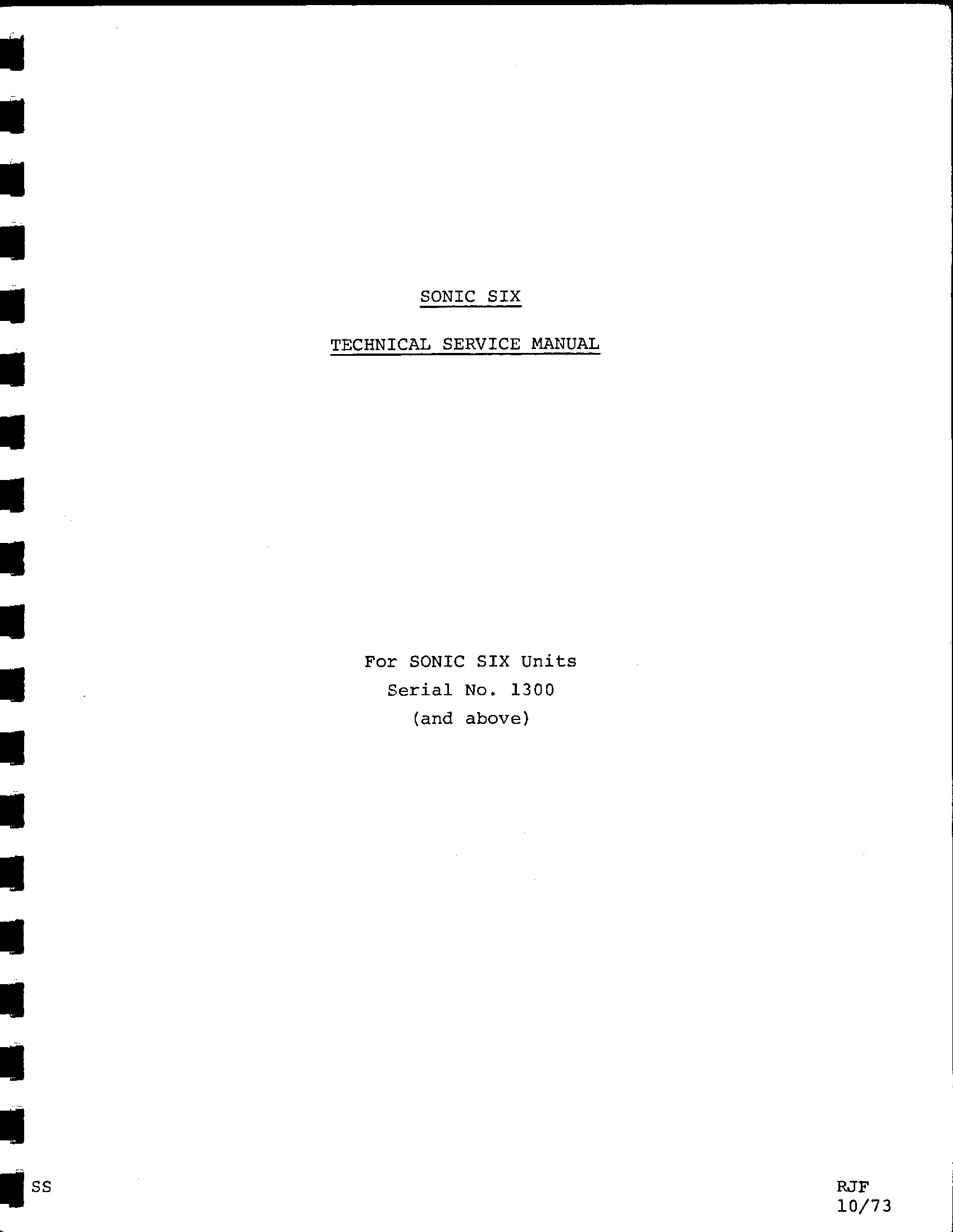

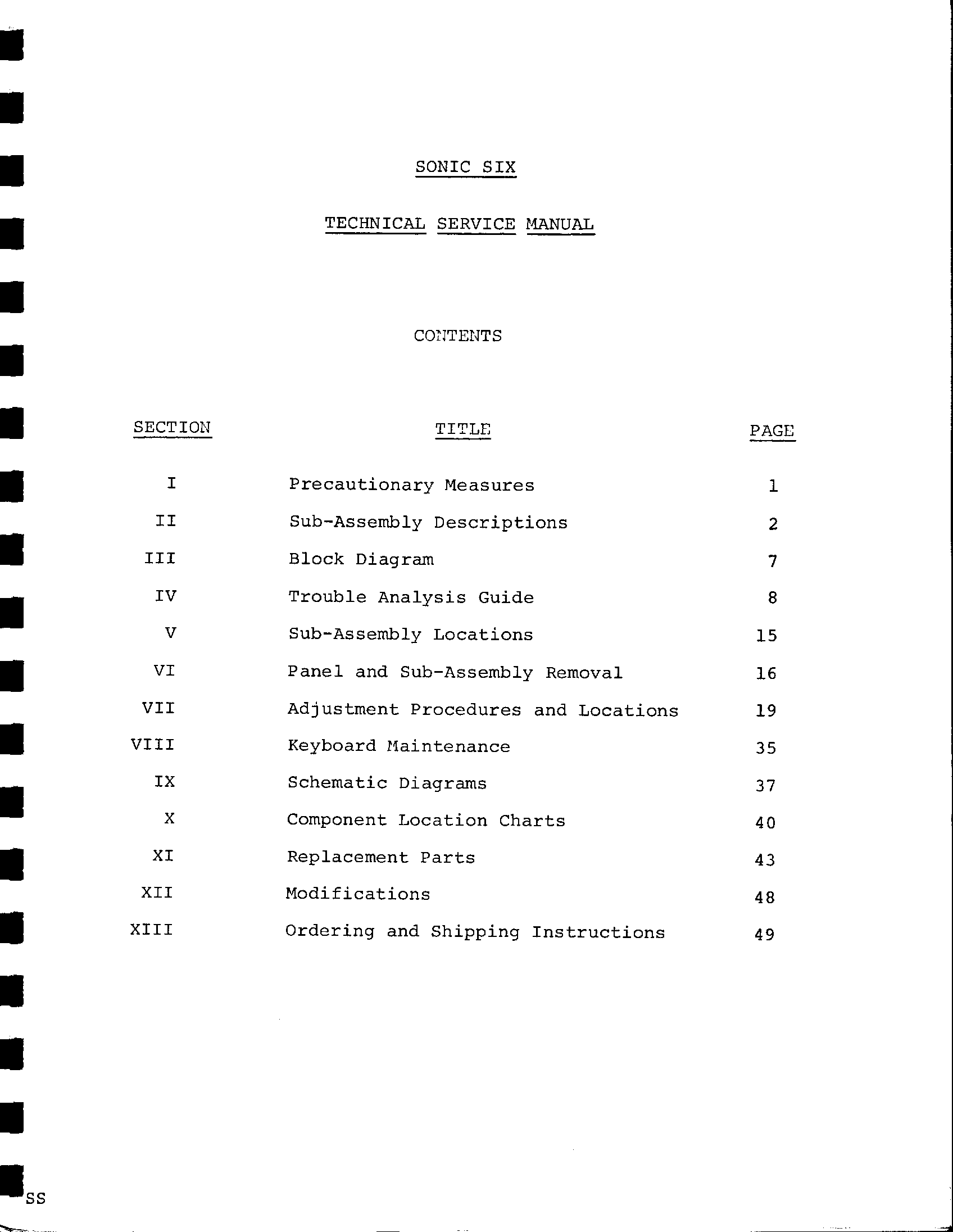

Moog Sonic Six Service Manual p1 81K GIF
Moog Sonic Six Service Manual p2 15K GIF
Moog Sonic Six Service Manual p3 28K GIF

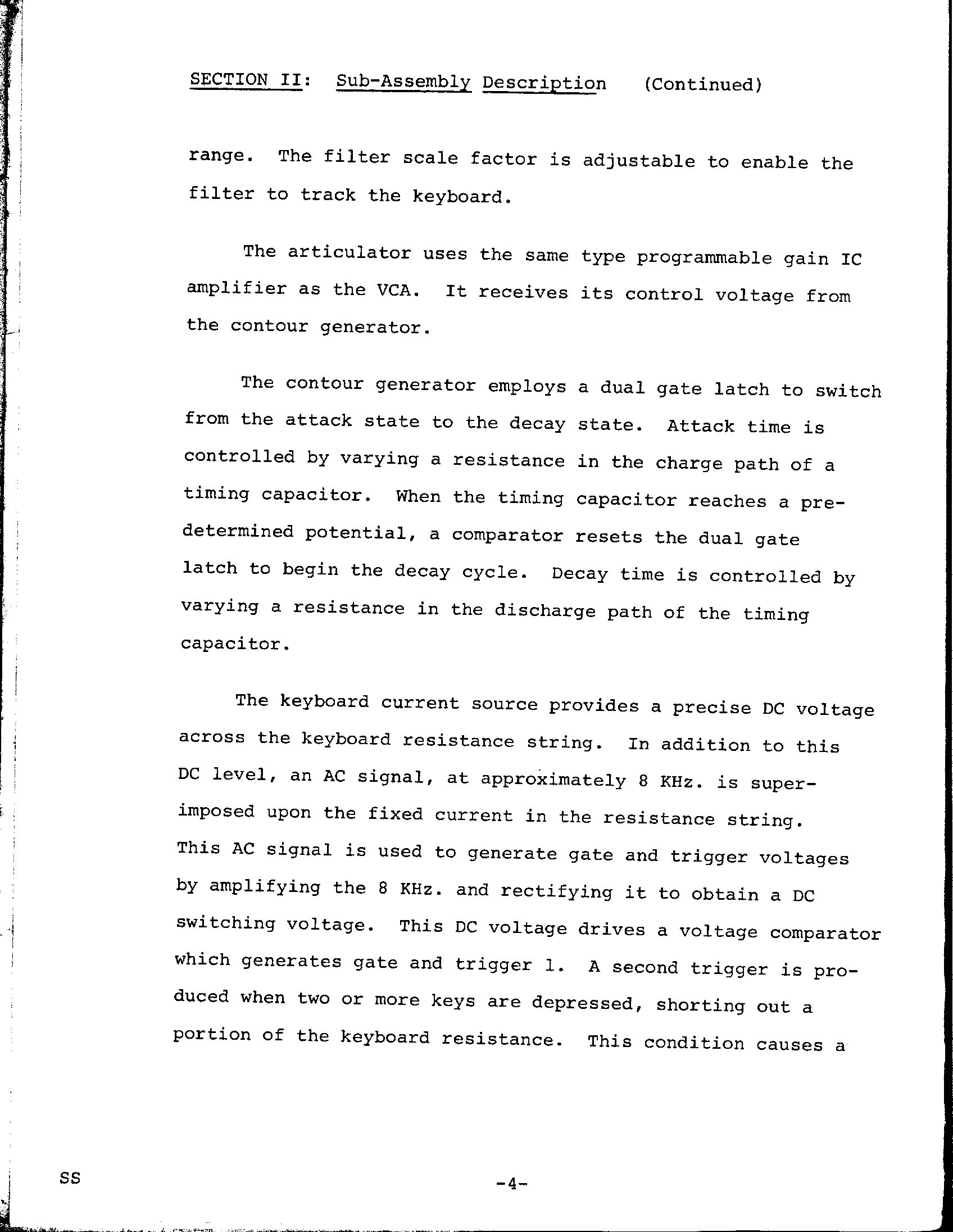

Moog Sonic Six Service Manual p4 90K GIF

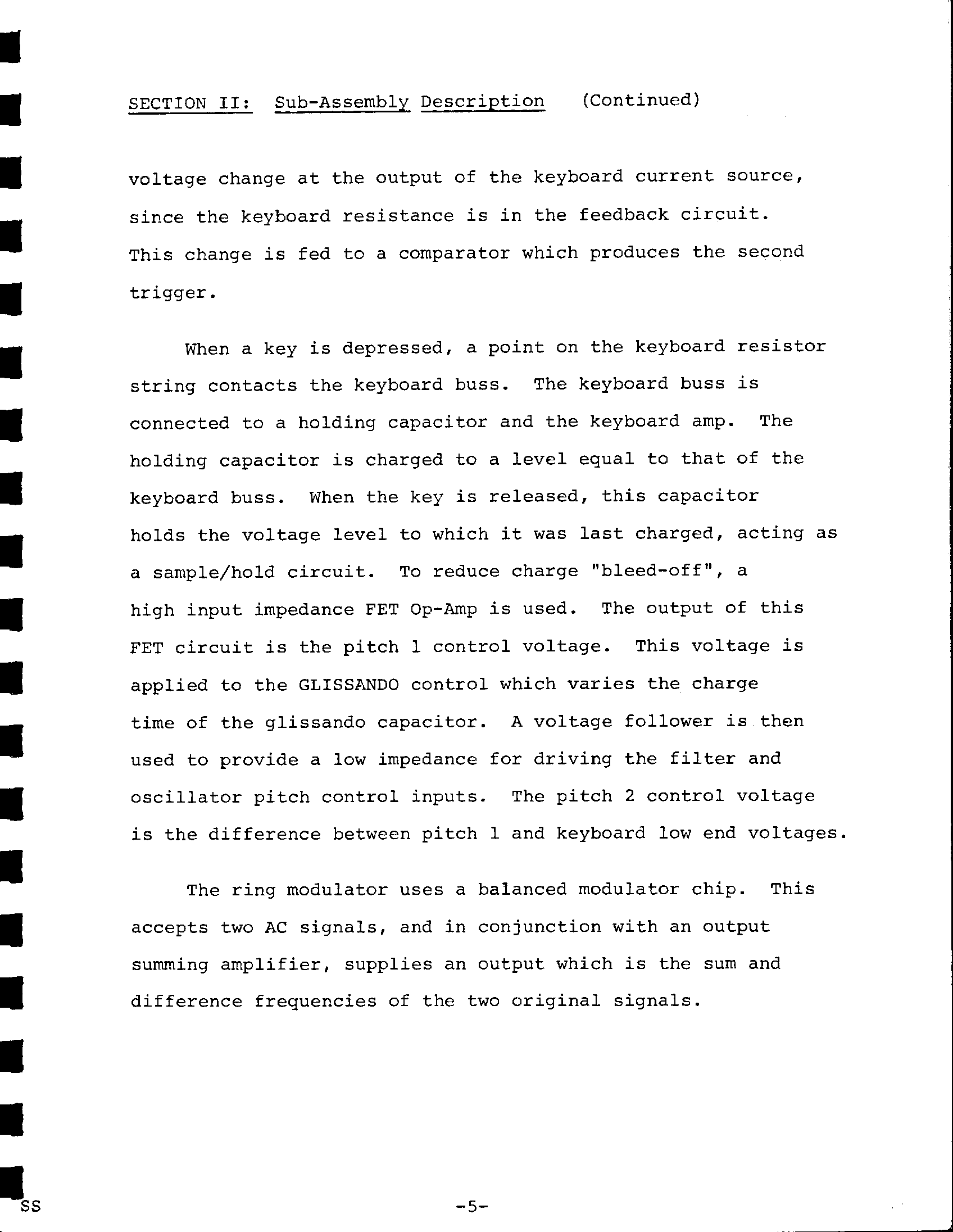

Moog Sonic Six Service Manual p5 42K GIF

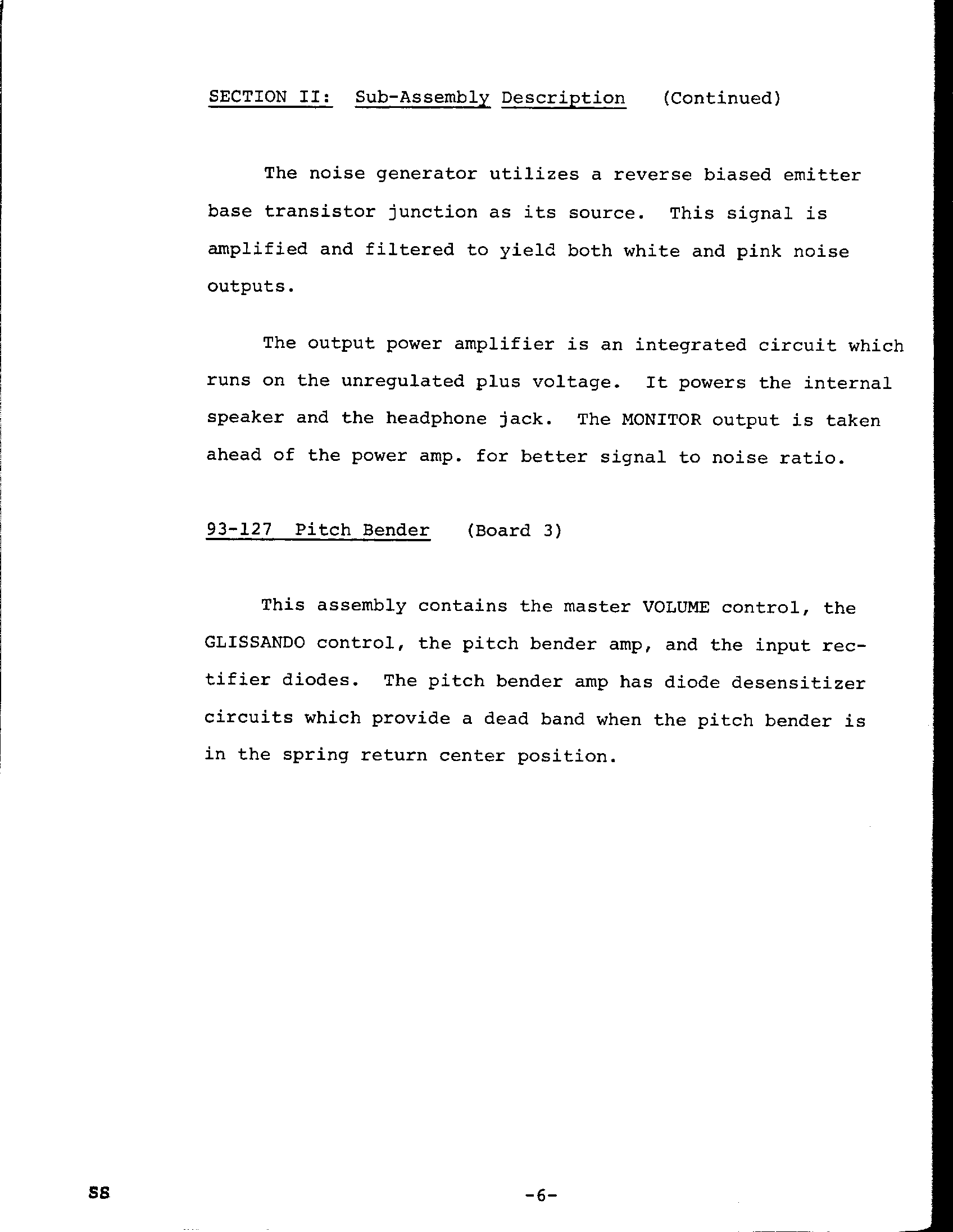

Moog Sonic Six Service Manual p6 58K GIF
Moog Sonic Six Service Manual p7 52K GIF
Moog Sonic Six Service Manual p8 58K GIF

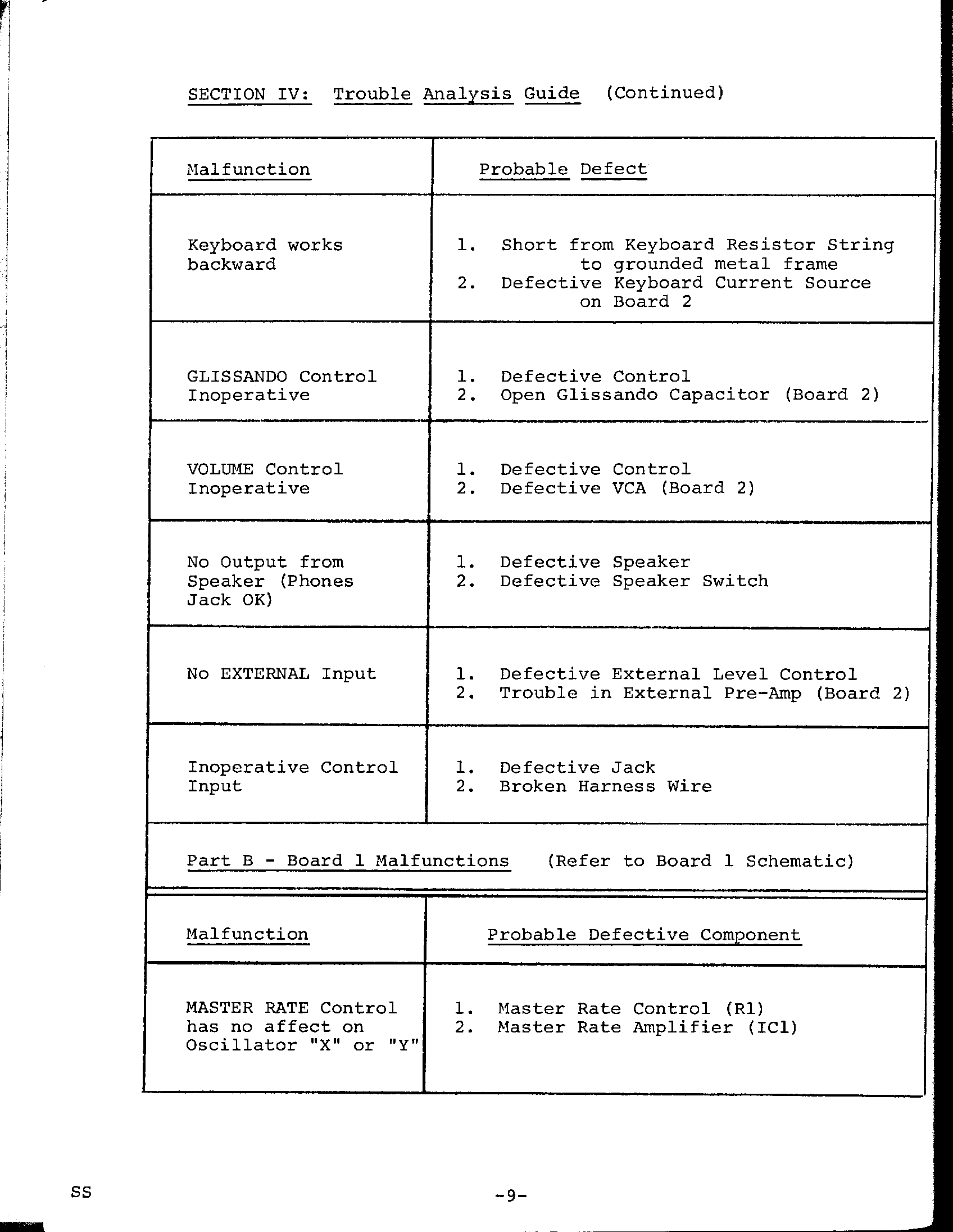

Moog Sonic Six Service Manual p9 55K GIF
Moog Sonic Six Service Manual p10 39K GIF
Moog Sonic Six Service Manual p11 67K GIF
Moog Sonic Six Service Manual p12 60K GIF
Moog Sonic Six Service Manual p13 65K GIF

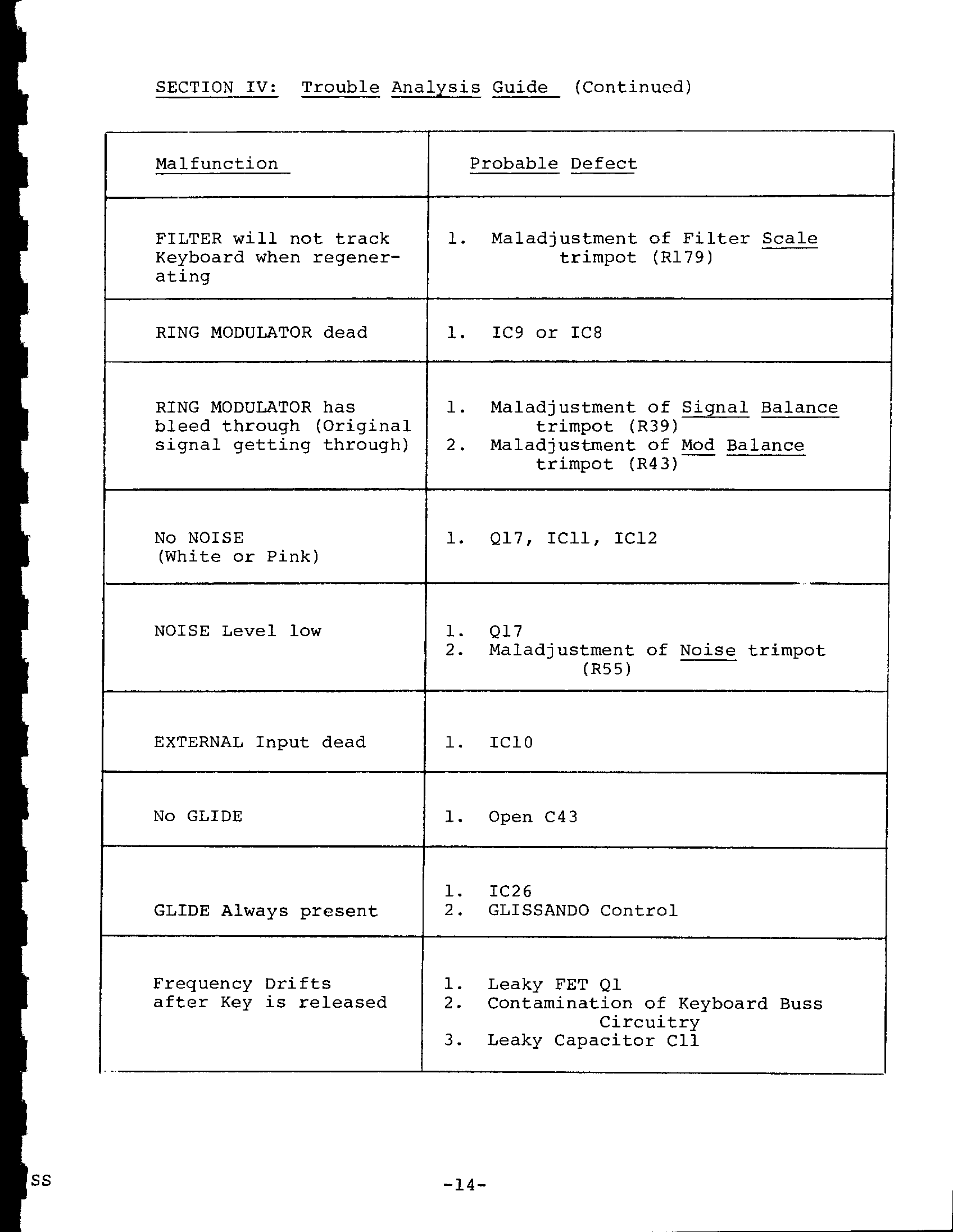

Moog Sonic Six Service Manual p14 57K GIF
Moog Sonic Six Service Manual p15 57K GIF

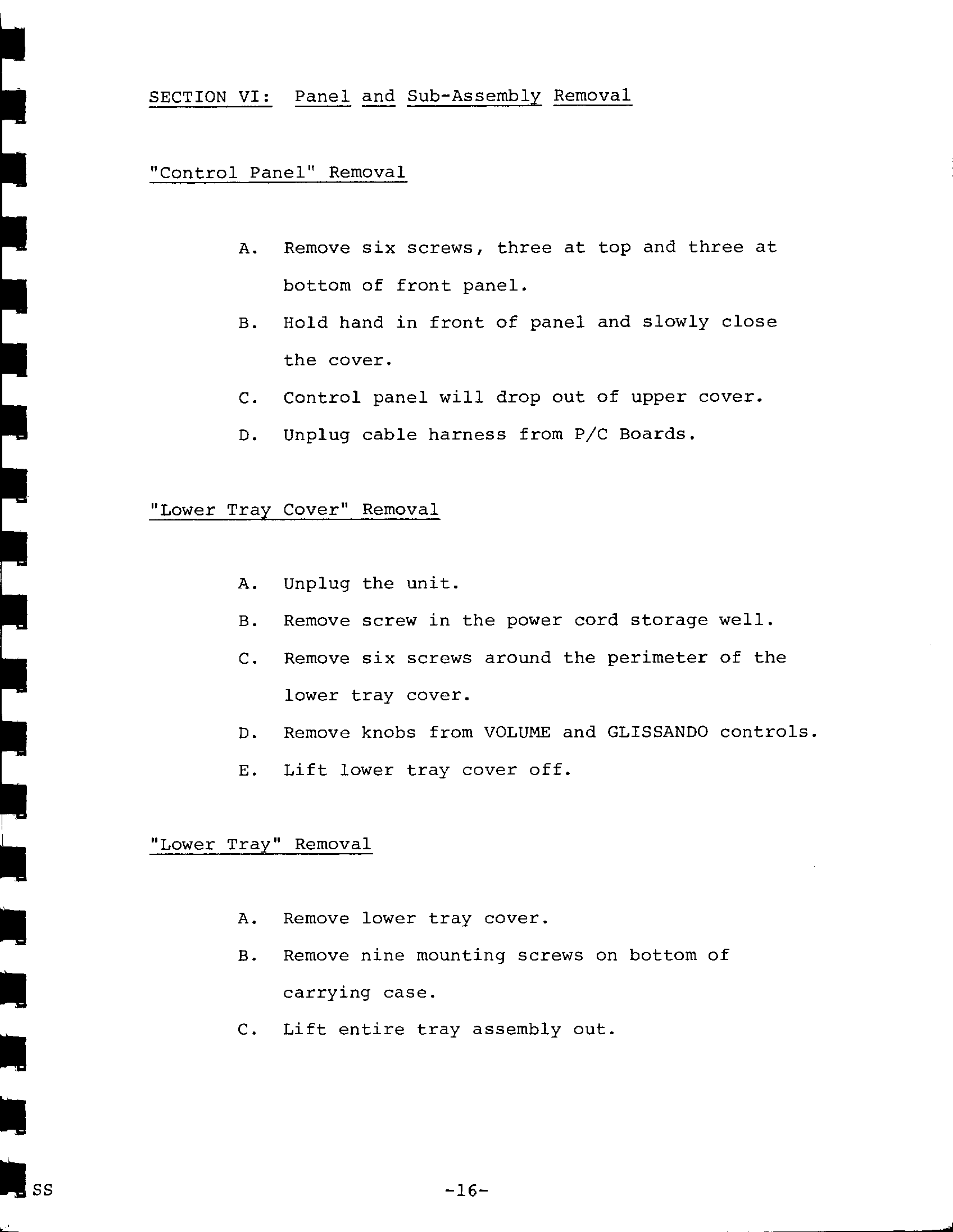

Moog Sonic Six Service Manual p16 45K GIF
Moog Sonic Six Service Manual p17 49K GIF
Moog Sonic Six Service Manual p18 48K GIF
Moog Sonic Six Service Manual p19 54K GIF

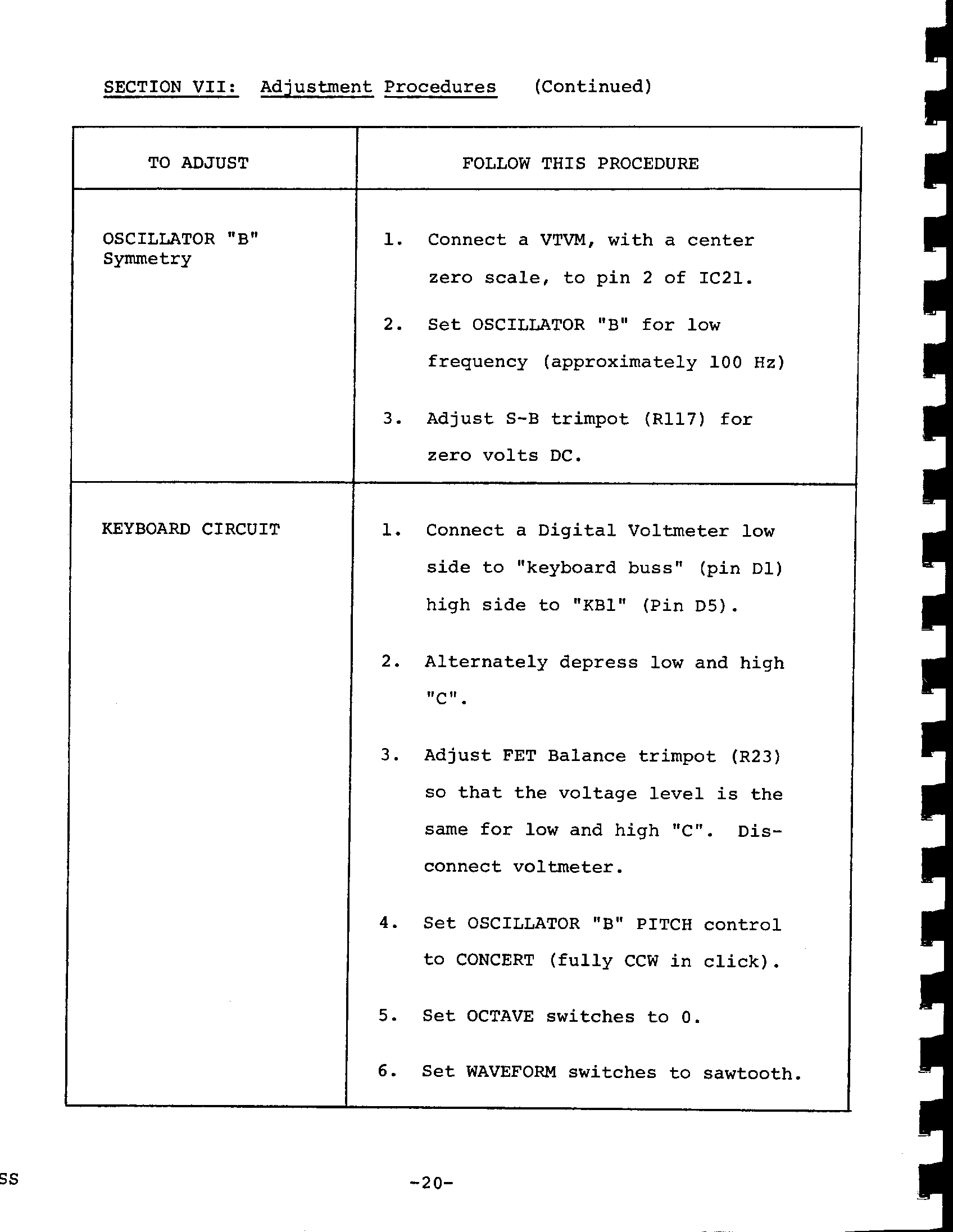

Moog Sonic Six Service Manual p20 50K GIF
Moog Sonic Six Service Manual p21 35K GIF

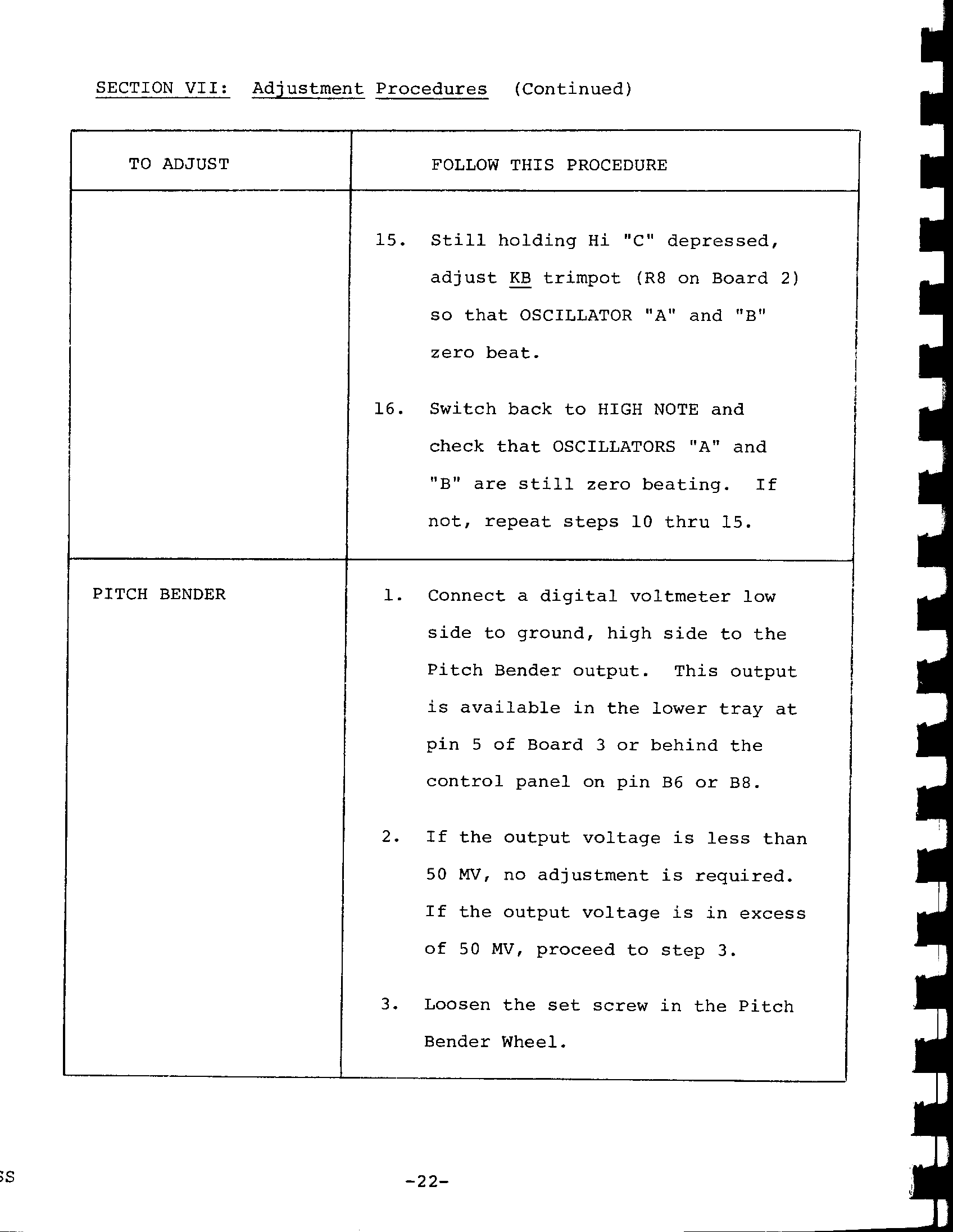

Moog Sonic Six Service Manual p22 50K GIF

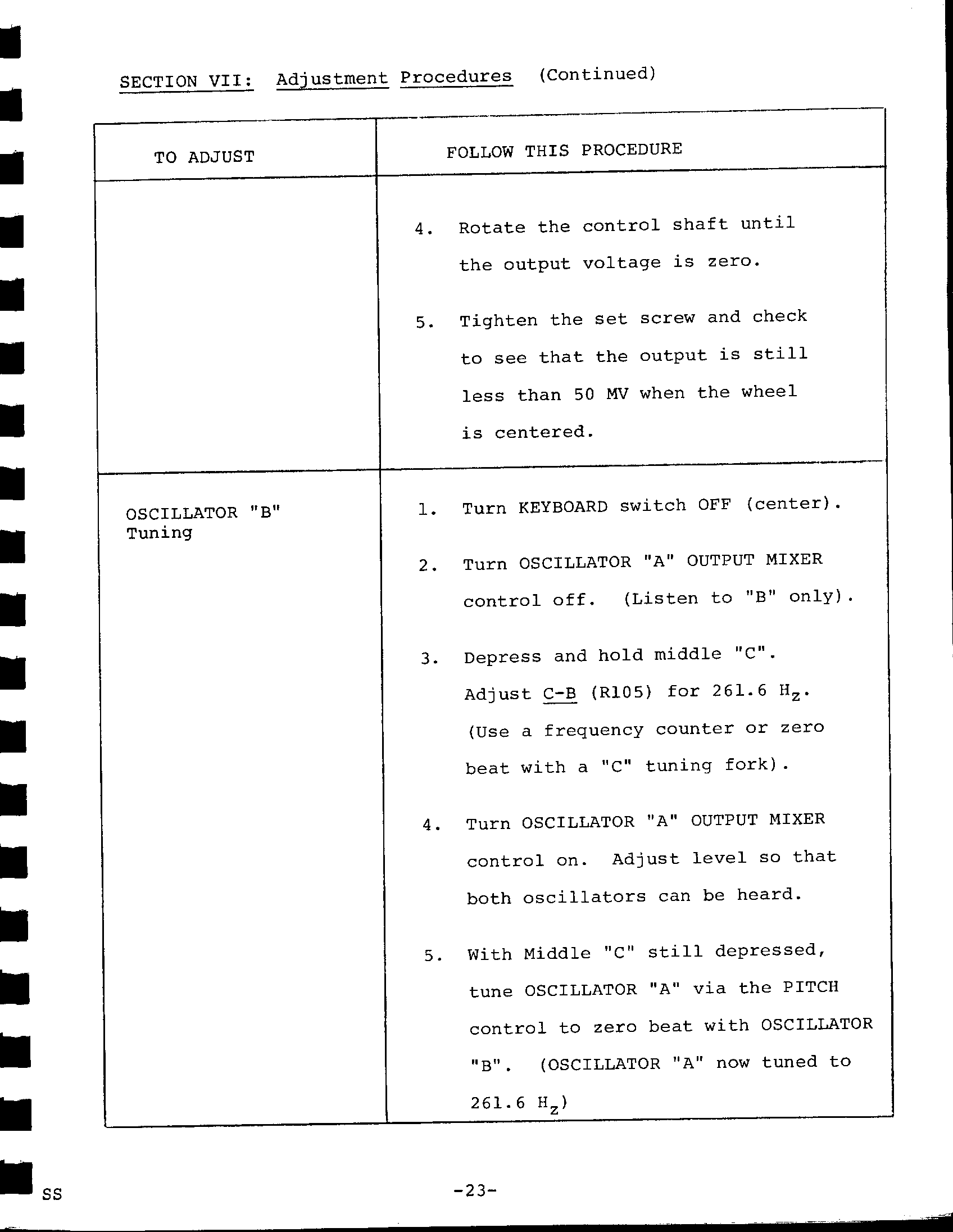

Moog Sonic Six Service Manual p23 33K GIF
Moog Sonic Six Service Manual p24 38K GIF
Moog Sonic Six Service Manual p25 27K GIF
Moog Sonic Six Service Manual p26 51K GIF
Moog Sonic Six Service Manual p27 49K GIF

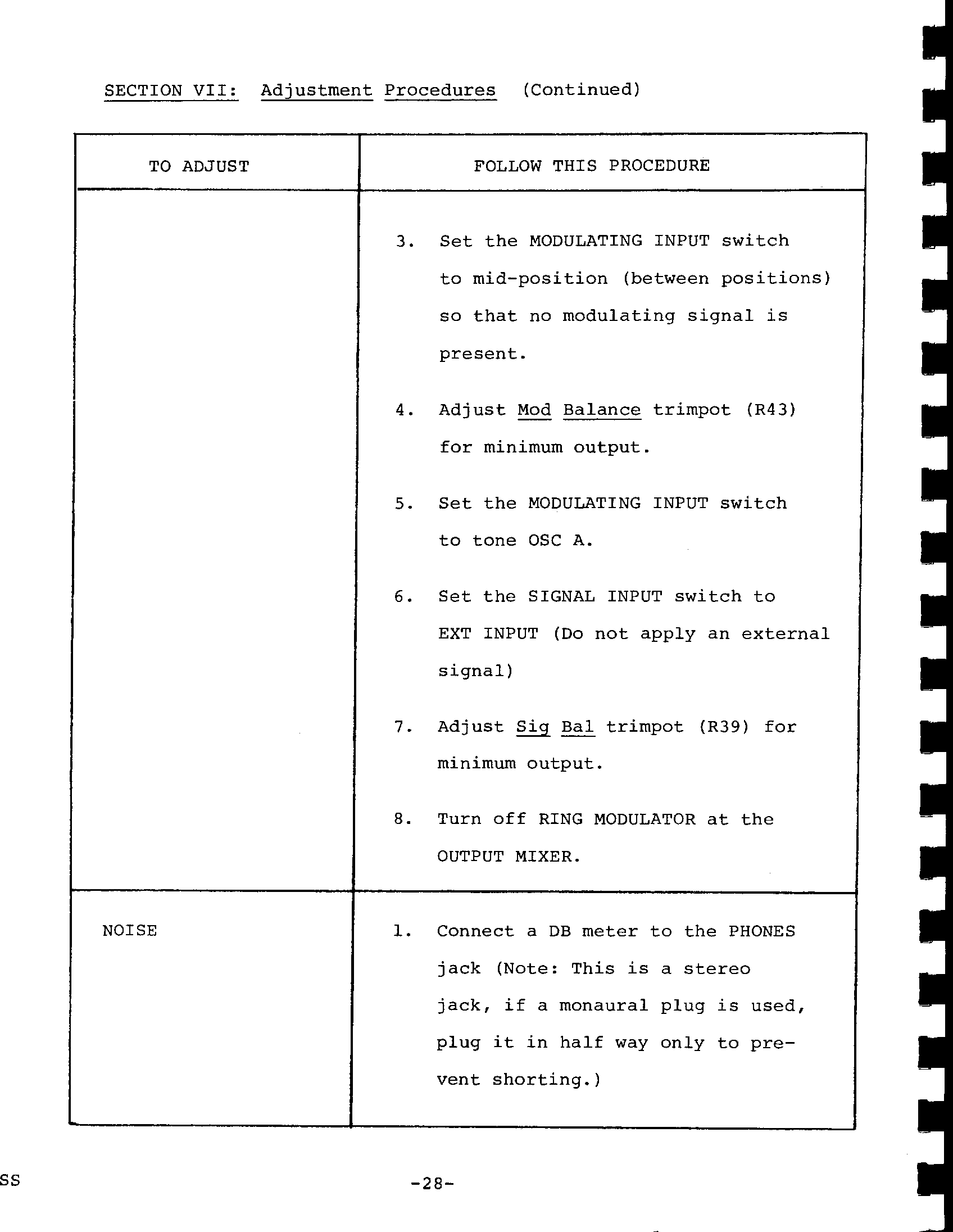

Moog Sonic Six Service Manual p28 48K GIF
Moog Sonic Six Service Manual p29 48K GIF
Moog Sonic Six Service Manual p30 49K GIF

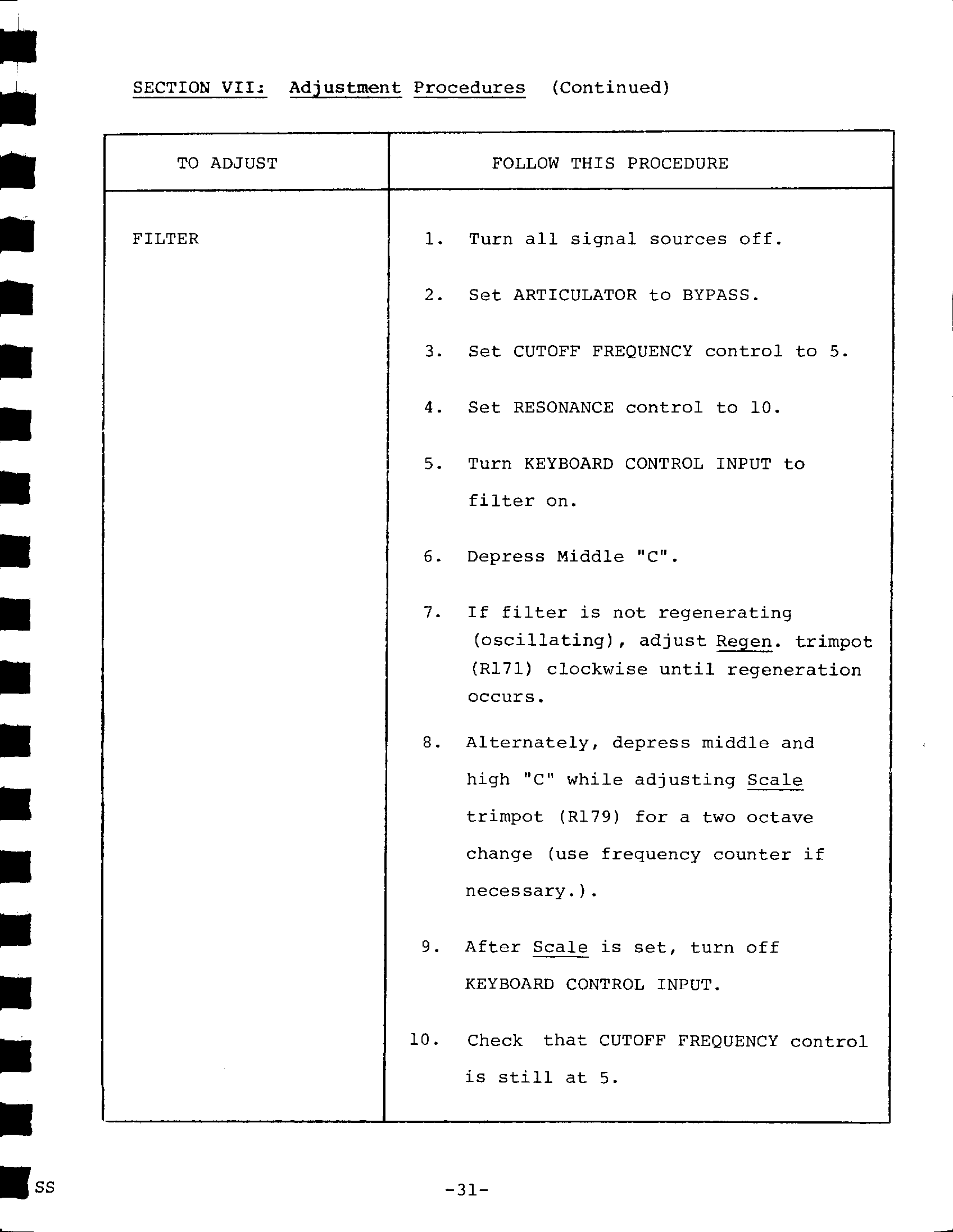

Moog Sonic Six Service Manual p31 49K GIF

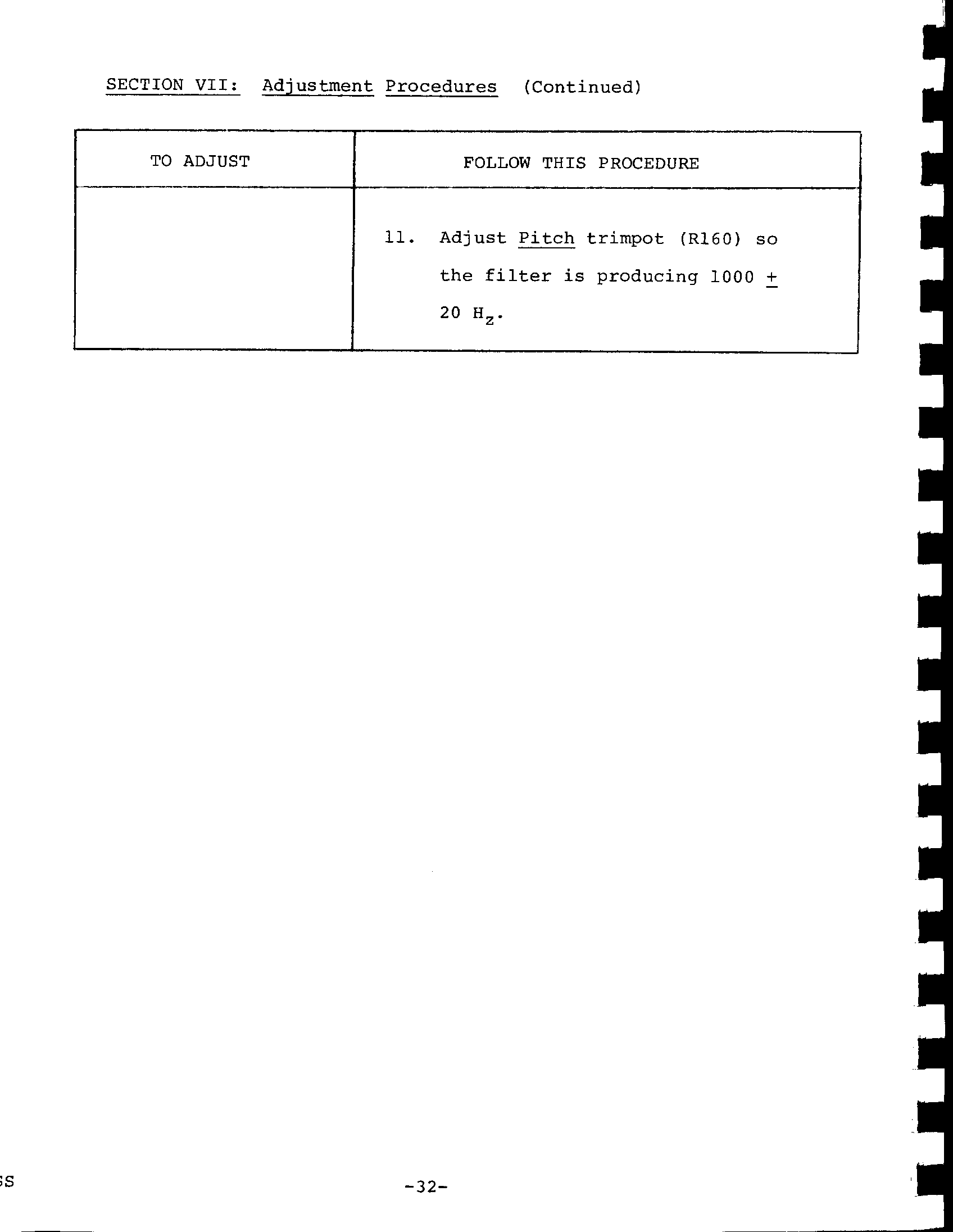

Moog Sonic Six Service Manual p32 45K GIF
Moog Sonic Six Service Manual p33 46K GIF
Moog Sonic Six Service Manual p34 45K GIF

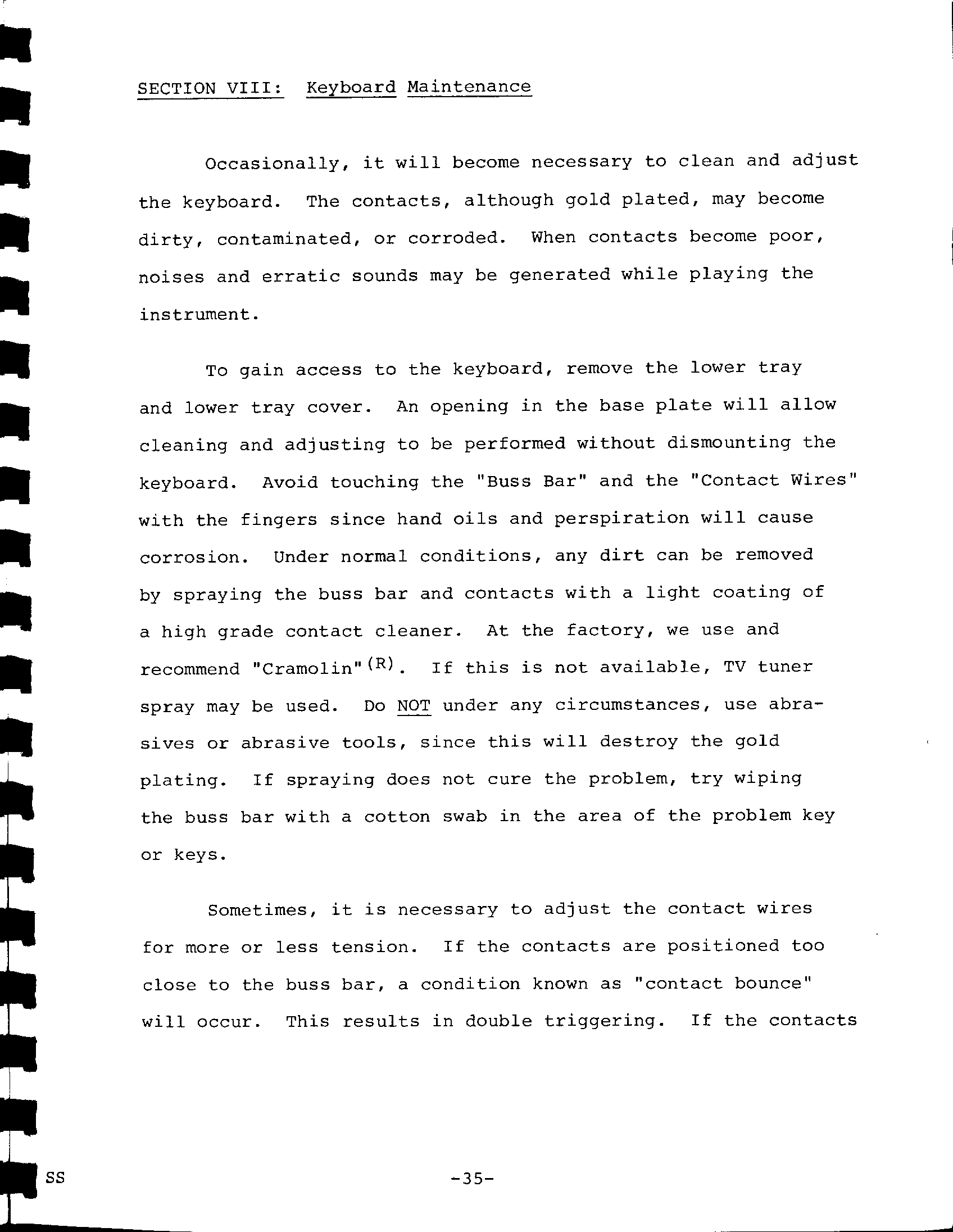

Moog Sonic Six Service Manual p35 47K GIF
Moog Sonic Six Service Manual p36 42K GIF
Moog Sonic Six Service Manual p37 47K GIF
Moog Sonic Six Service Manual p38 45K GIF
Moog Sonic Six Service Manual p39 22K GIF
Moog Sonic Six Service Manual p40 40K GIF

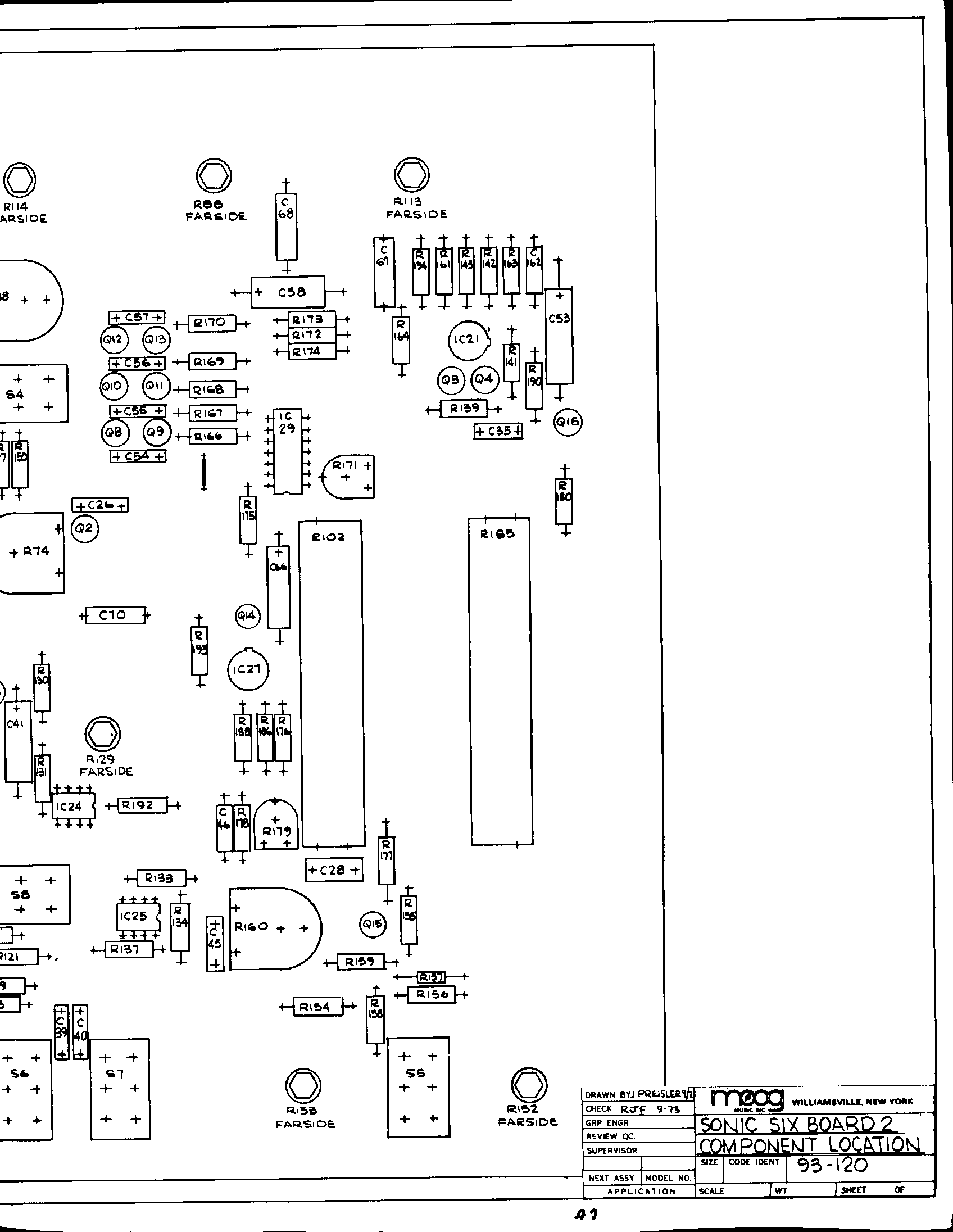

Moog Sonic Six Service Manual p41 26K GIF
Moog Sonic Six Service Manual p42 35K GIF
Moog Sonic Six Service Manual p43 34K GIF

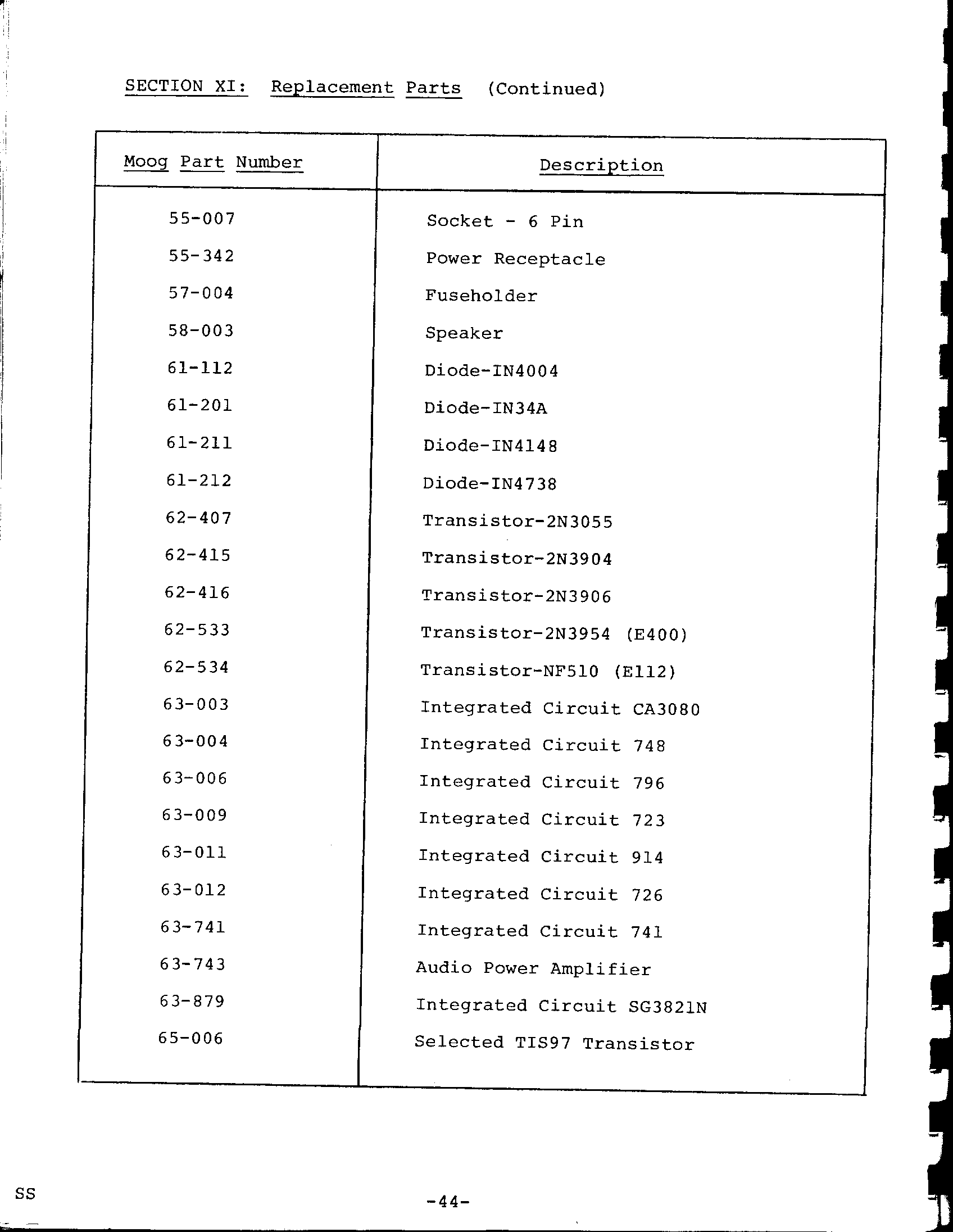

Moog Sonic Six Service Manual p44 53K GIF

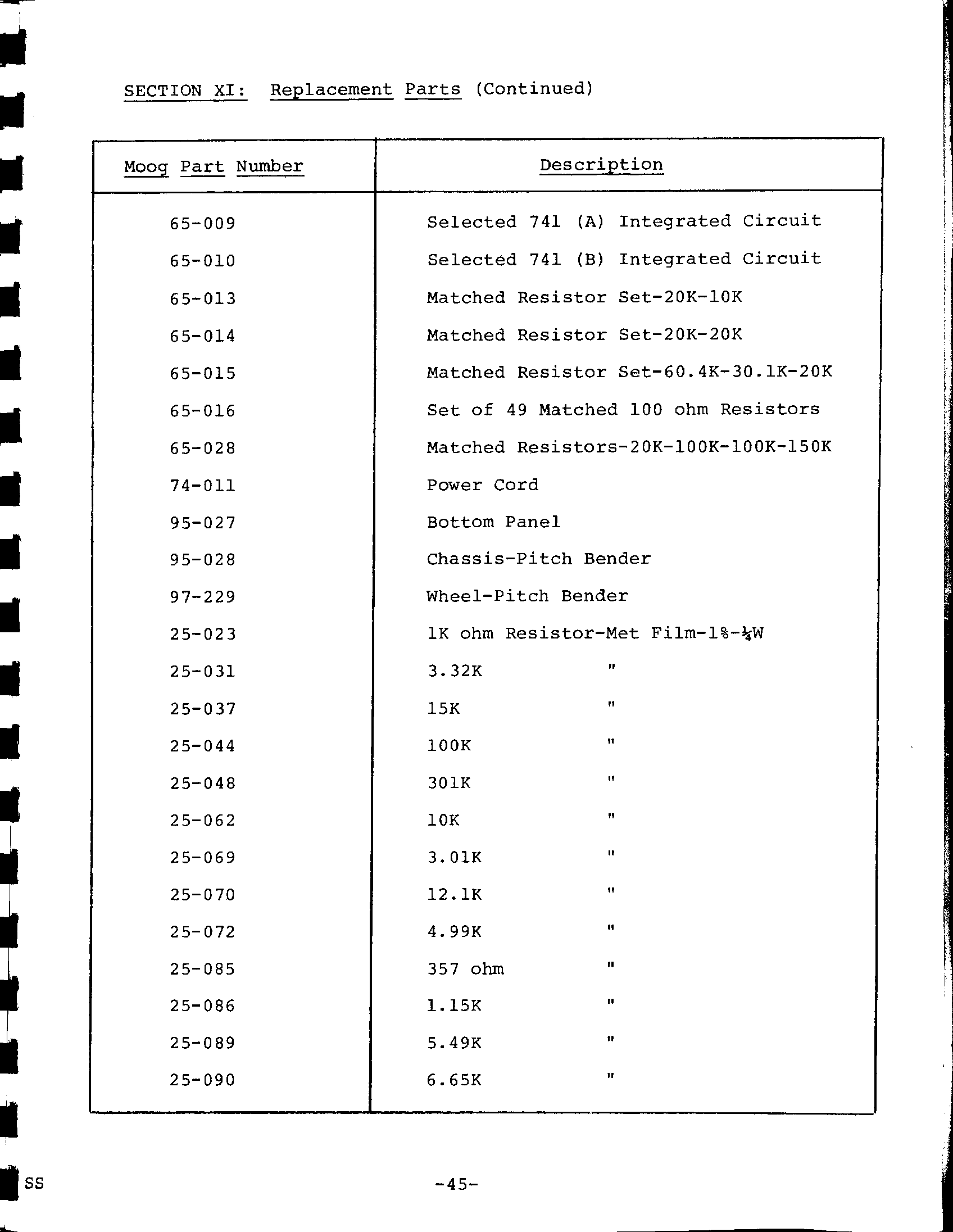

Moog Sonic Six Service Manual p45 31K GIF
Moog Sonic Six Service Manual p46 53K GIF
Moog Sonic Six Service Manual p47 59K GIF
Moog Sonic Six Service Manual p48 55K GIF
Moog Sonic Six Service Manual p49 94K GIF
Moog Sonic Six Service Manual p50 102K GIF
Moog Sonic Six Service Manual p51 92K GIF
Moog Sonic Six Service Manual p52 92K GIF
Moog Sonic Six Service Manual p53 109K GIF
Moog Sonic Six Service Manual p54 121K GIF
Moog Sonic Six Service Manual p55 61K GIF
Moog Sonic Six Service Manual p56 76K GIF
Moog Sonic Six Service Manual p57 73K GIF
Moog Sonic Six Service Manual p58 85K GIF
Moog Sonic Six Service Manual p59 76K GIF
Moog Sonic Six Service Manual p60 65K GIF
Moog Sonic Six Service Manual p61 45K GIF
Moog Sonic Six Service Manual p62 35K GIF
Moog Sonic Six Service Manual p63 50K GIF
Moog Sonic Six Service Manual p64 48K GIF
Moog Sonic Six Service Manual p65 50K GIF
Moog Sonic Six Service Manual p66 45K GIF
Moog Sonic Six Service Manual p68 26K GIF
Moog Sonic Six Service Manual p69 38K GIF
Moog Sonic Six Service Manual p70 48KGIF
